DLP 4750LC Fiber Couple - On Axis Projection

EKB's DLP® E4750LC Fiber Couple Light Control On Axis production module is an easy-to-use platform for a wide variety of industrial applications like 3D scanning, 3D printing, medical imaging and automated optical inspection (AOI). It supports two configurable input triggers and one configurable output trigger to allow convenient synchronization with cameras, sensors, or other peripheral devices. The platform features a DLP4710 (.47 1080p) digital micromirror device (DMD), 2 DLPC3479 display and light controller and a DLPA3005 PMIC/LED driver. It comes equipped with a production ready optical engine and offers a compelling combination of resolution (Full HD), brightness, speed and programmability in a small form factor.
The E-4750LC includes boards, optical engine, DMD.

Features

• Up to 1440 Hz Binary Pattern Rate
• 0% offset; contrast ratio: 750:1; Throw Ratio 1.2
• Throw Ratio 1.2 ; Distortion <1% ; Uniformity >90% JBMA; Image size: 38” @ 1m
• DLP4710, DLP .47 1080p DMD
• DLPC3479, Digital Controller for the DLP4710 DMD
• DLPA3005, PMIC/LED Driver for the DLP4710 DMD and DLPC3479 controller
• Production ready optical engine from EKB Technologies
• DLP4710, DLPC3479 Configuration and Support Firmware

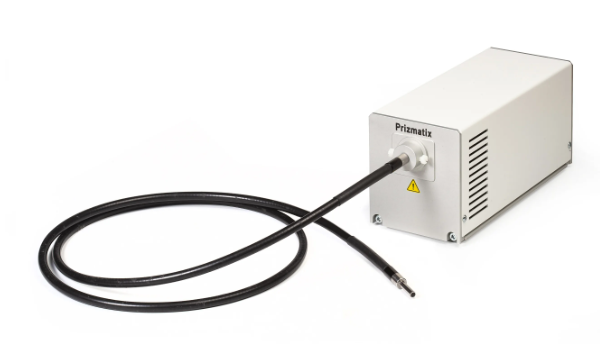

Fiber interface:

• Standard FC/PC connector Multimode Connector, Ø450 µm
• Thorlabs’s LLG05-4H(Ø5 mm Light Guide)
• Lumatec’s LIQUID LIGHTGUIDE Series 300(Ø5mm)
• Custom solution
• To Download STEP FILE Press here: E4750LC Fiber

*The 0.47" DMD is designed to work in visible light spectrum. Reduction in lifetime is expected at shorter wavelengths.
No warranty is provided when DMD is used outside 420-700nm range.
